2595-GHA-BA-2019
Client: Unknown
Status: Competition (2019)
Location: Banja Luka, Bosnia and Herzegovina
Coordinates: 44.765758, 17.194597
Climate: Continental, Temperate
Materials: Concrete, Stone
Environment: Riverside
Visualizer: Studio
Scale: Medium
Types: Bridge, Public space

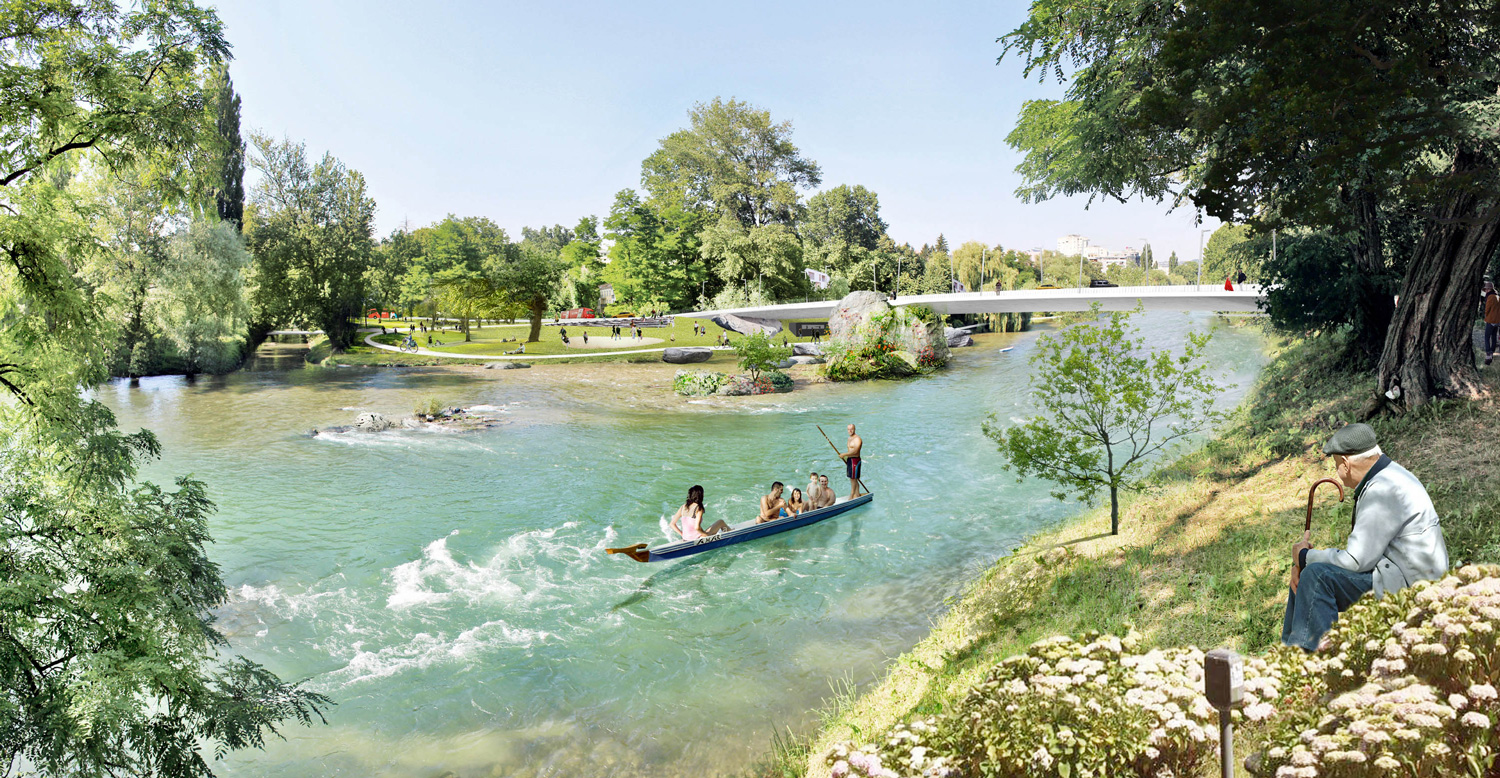

We see the new bridge as an opportunity to create non-existing urban scenarios with natural and built environmental elements in the heart of the city.
The bridge itself is the place where 2 entity meet: the natural environment evolving from the new urban park and the river, and the built environment, the structure of the urban infrastructure.
The body of the bridge has a simple, dynamic form leaning on an adventurous viewpoint.
Copenhagen style bicycle lanes along the north side of the bridge: lanes separated from the motorist and pedestrian traffic allowing each to travel more safely on the same network.

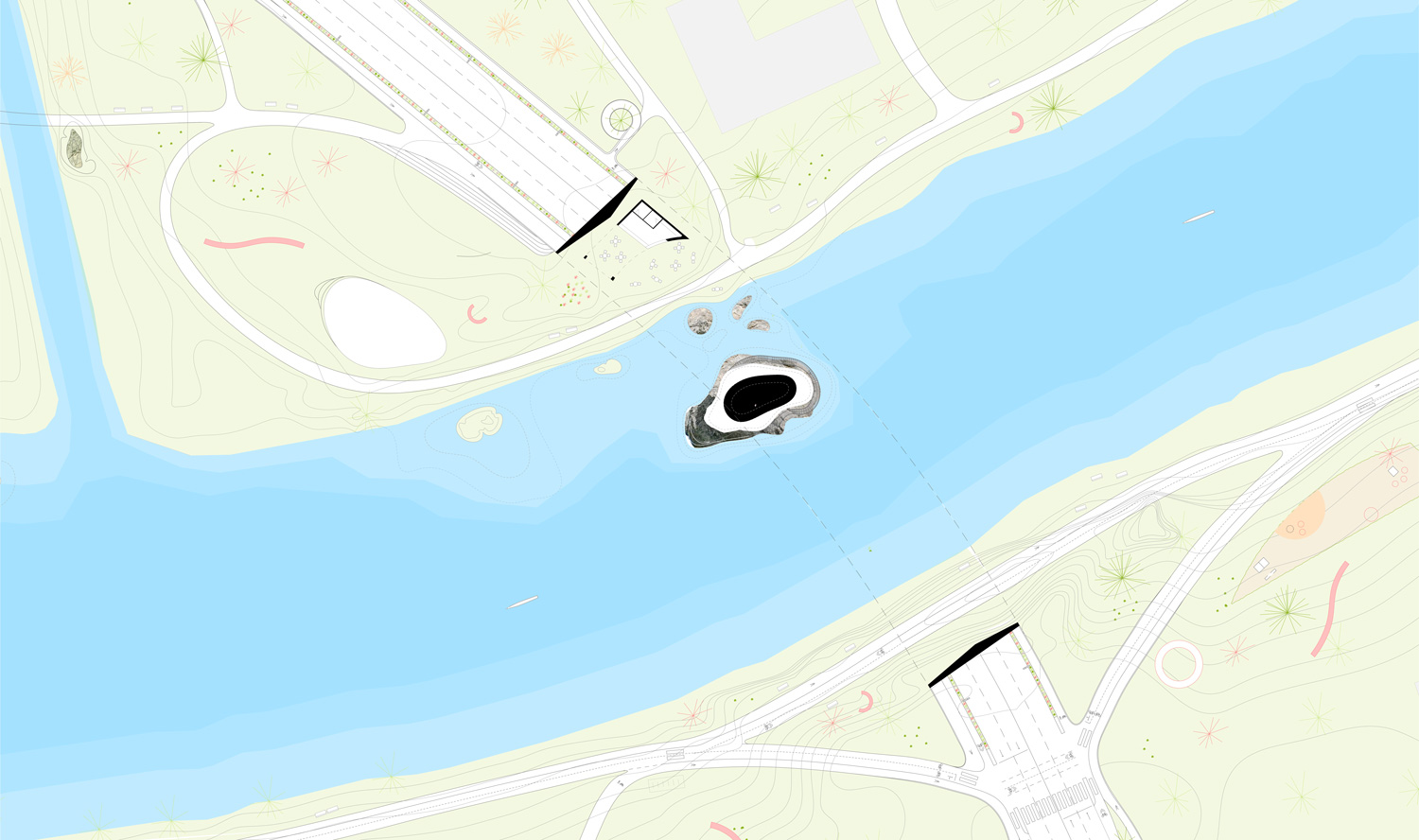

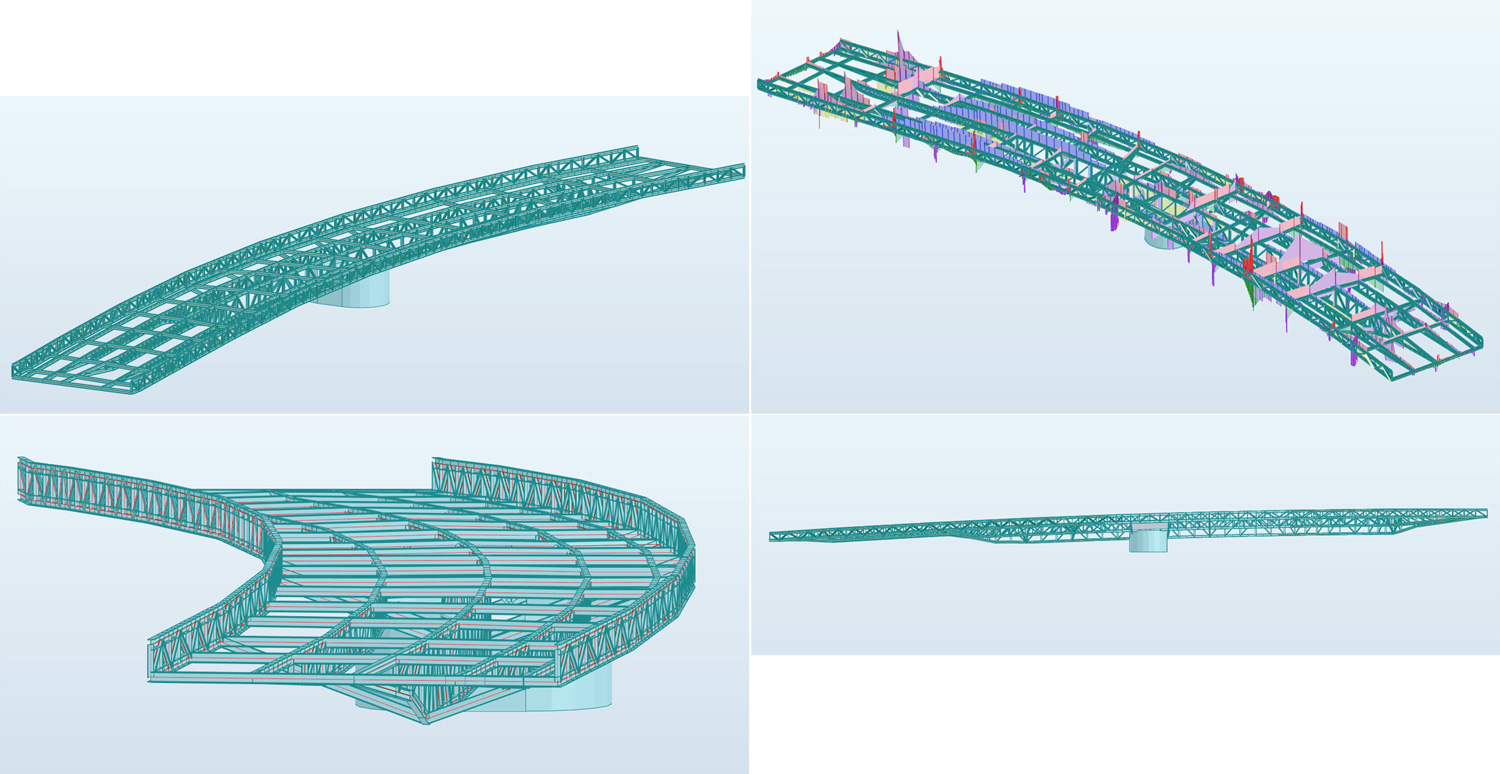

The bridge itself is a concrete-steel composite structure with a steel truss main load bearing structure. Between the transversal supporting structures the concrete bridge deck works together with the 3 main longitudinal truss structure, that are supported at 3 points. Besides the two bridge heads, the third point of support is hidden inside a man-made rock structure, in the river.
