Carmen Würth Forum
Architect: David Chipperfield
Client: Adolf Würth GmbH & Co. KG
Status: Competition (2006) Project (2011) On going (2011 - 2017)
Location: Künzelsau, Germany
Coordinates: 49.262998, 9.673145
Climate: Continental, Temperate
Materials: Metal, Glass, Wood
Environments: Industrial, Countryside
Visualizer: Studio
Scale: 10.000 ㎡ Large
Types: Cultural, Mixed use

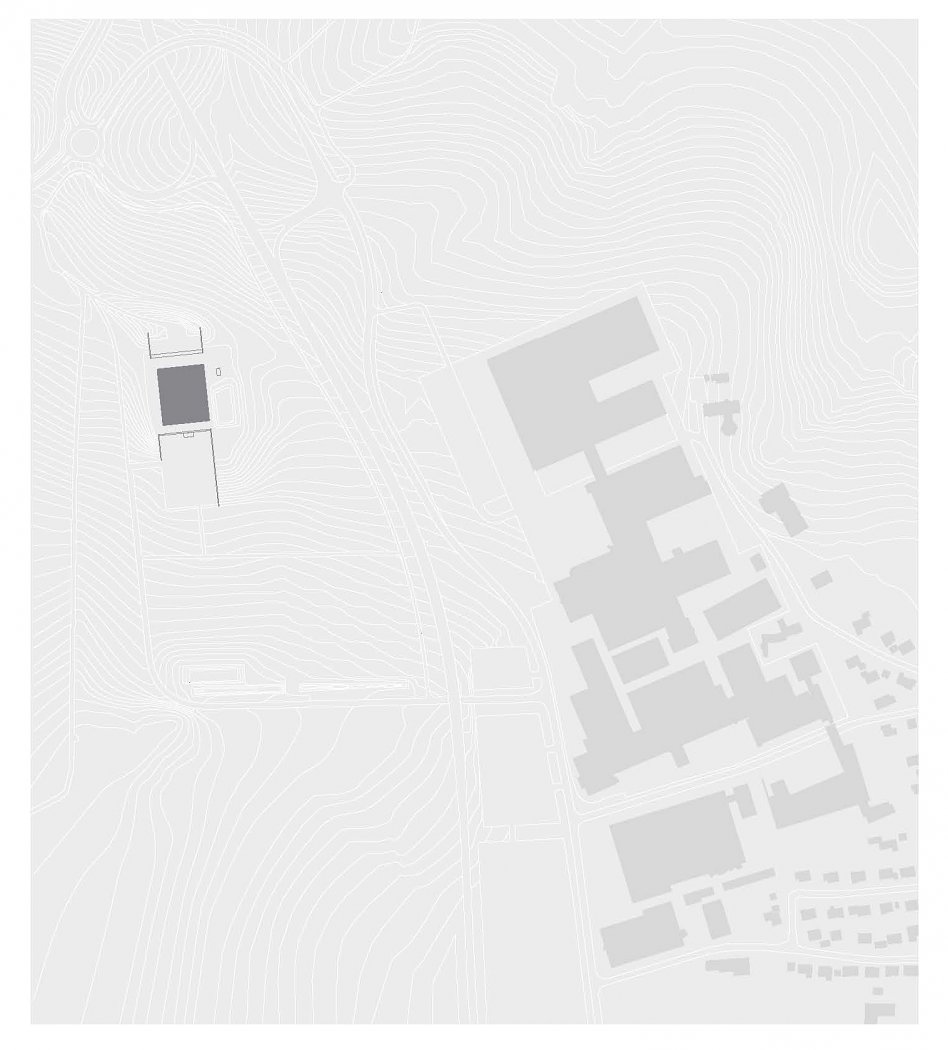

The headquarters of the company Adolf Würth is situated to the south of the German town of Künzelsau. The Carmen Würth Forum is to be built within its direct vicinity. During a first stage of construction, an event hall and a chamber music hall are due for completion in 2017.

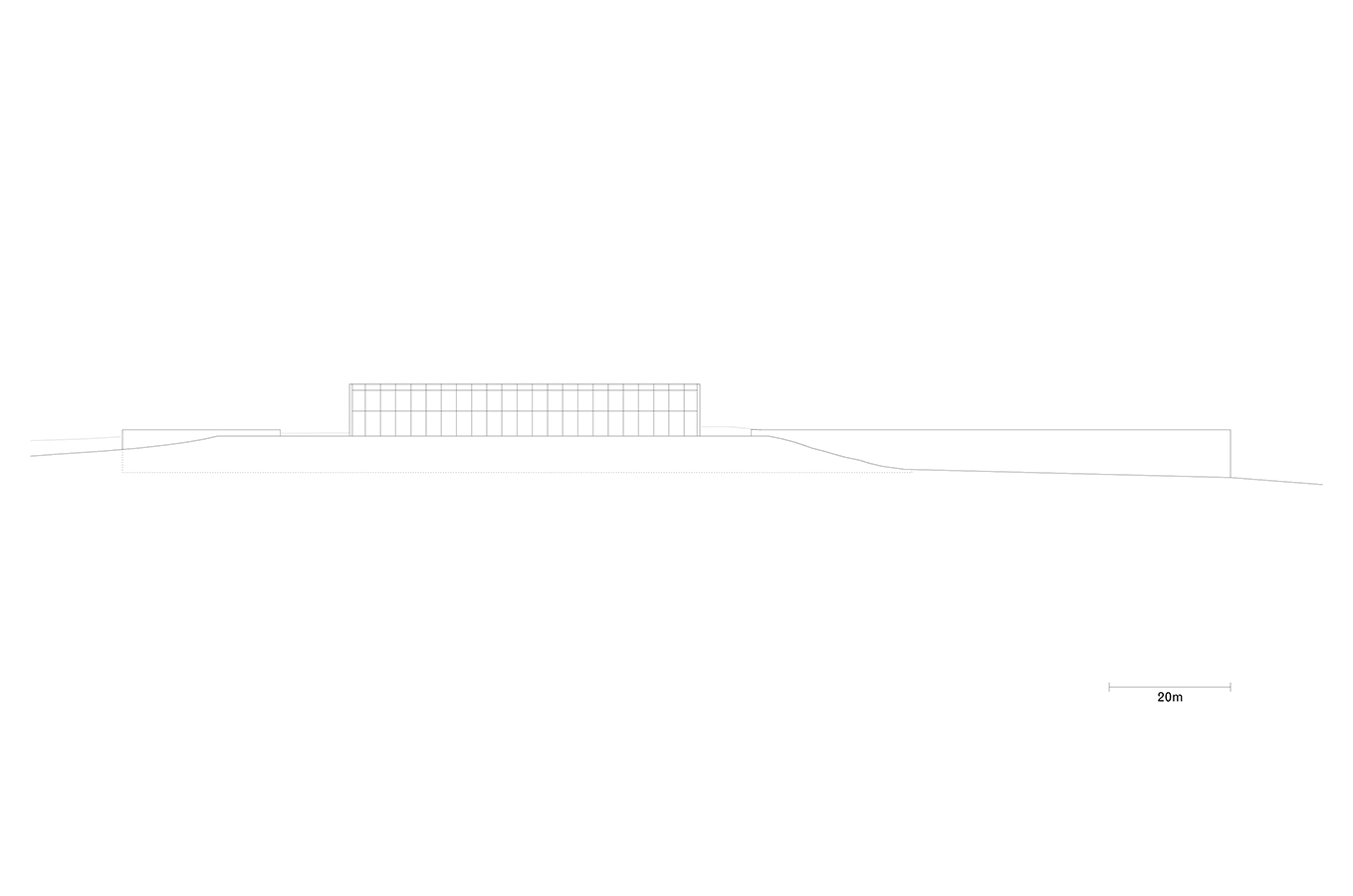

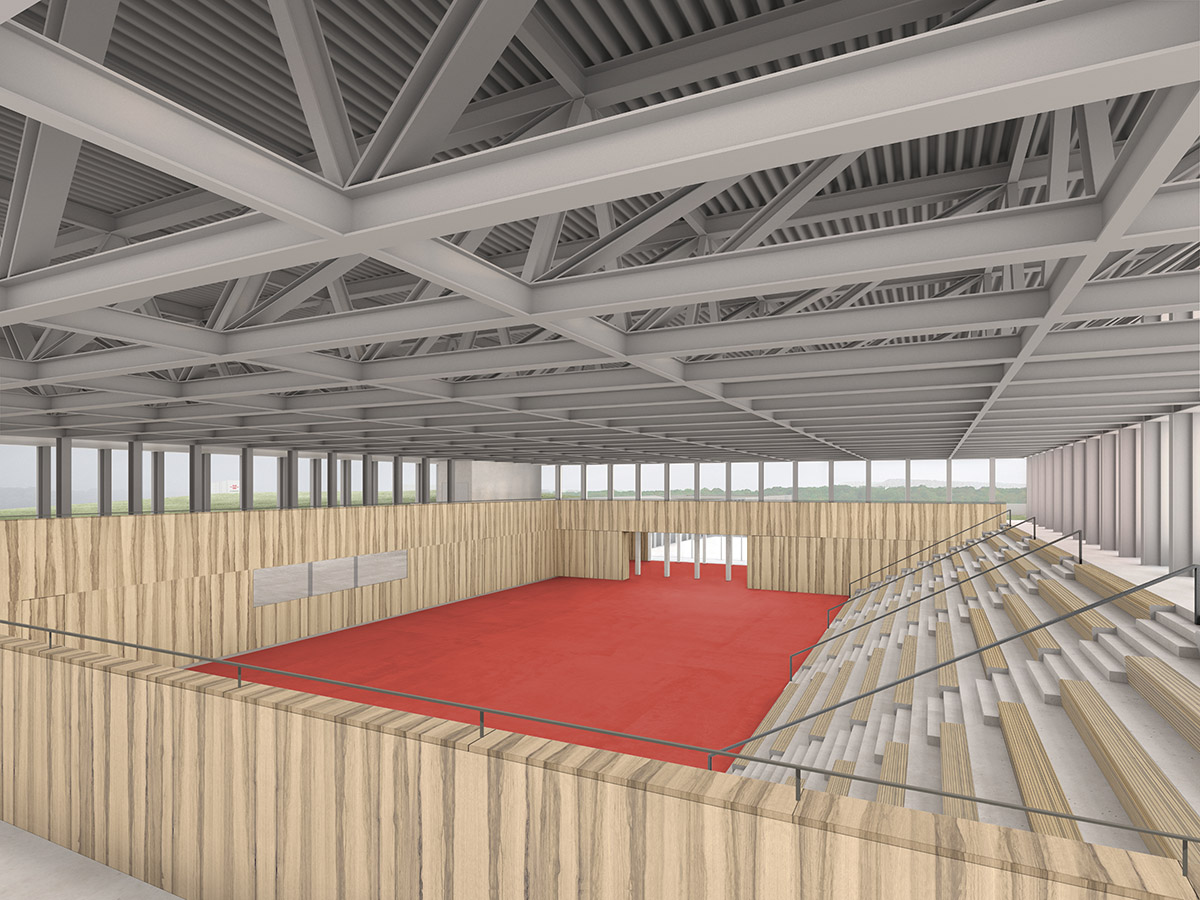

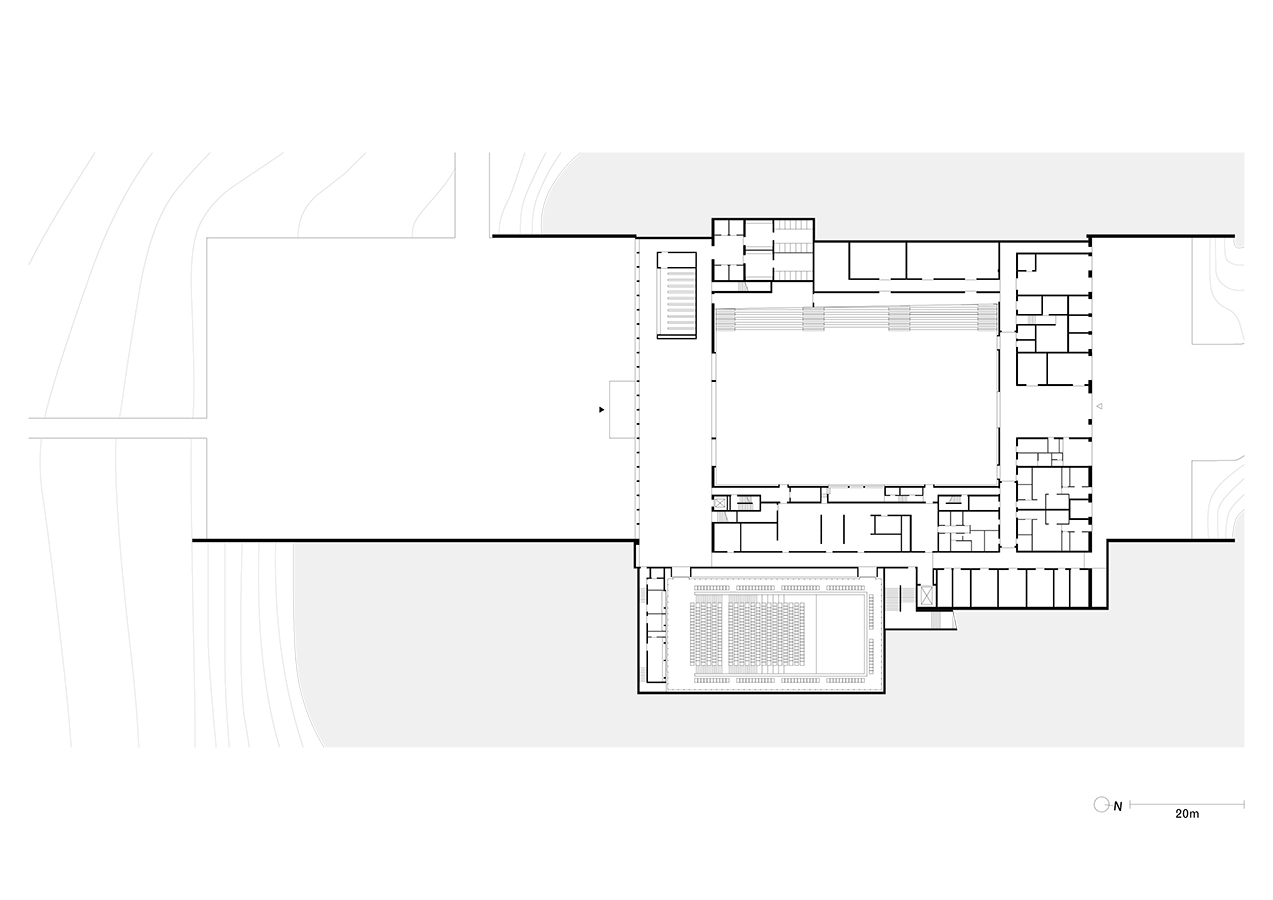

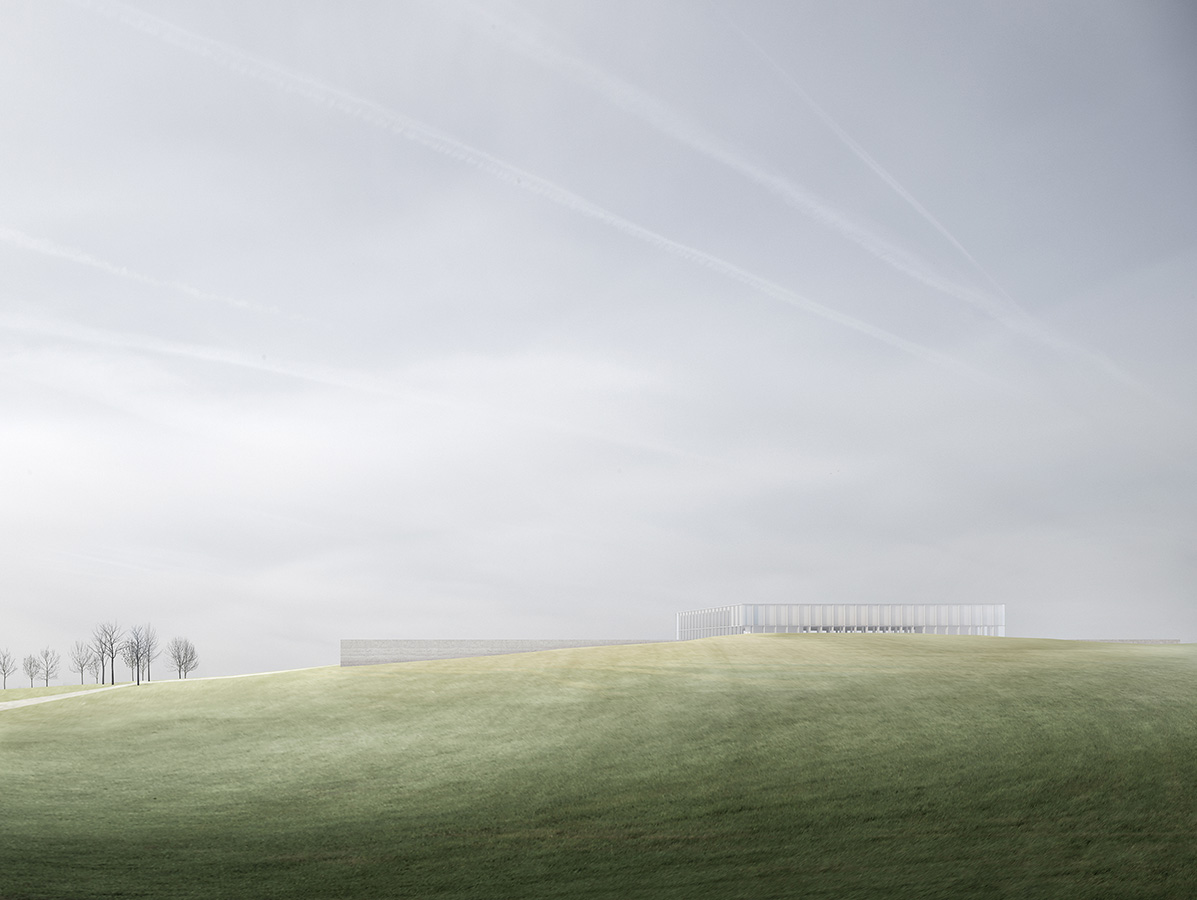

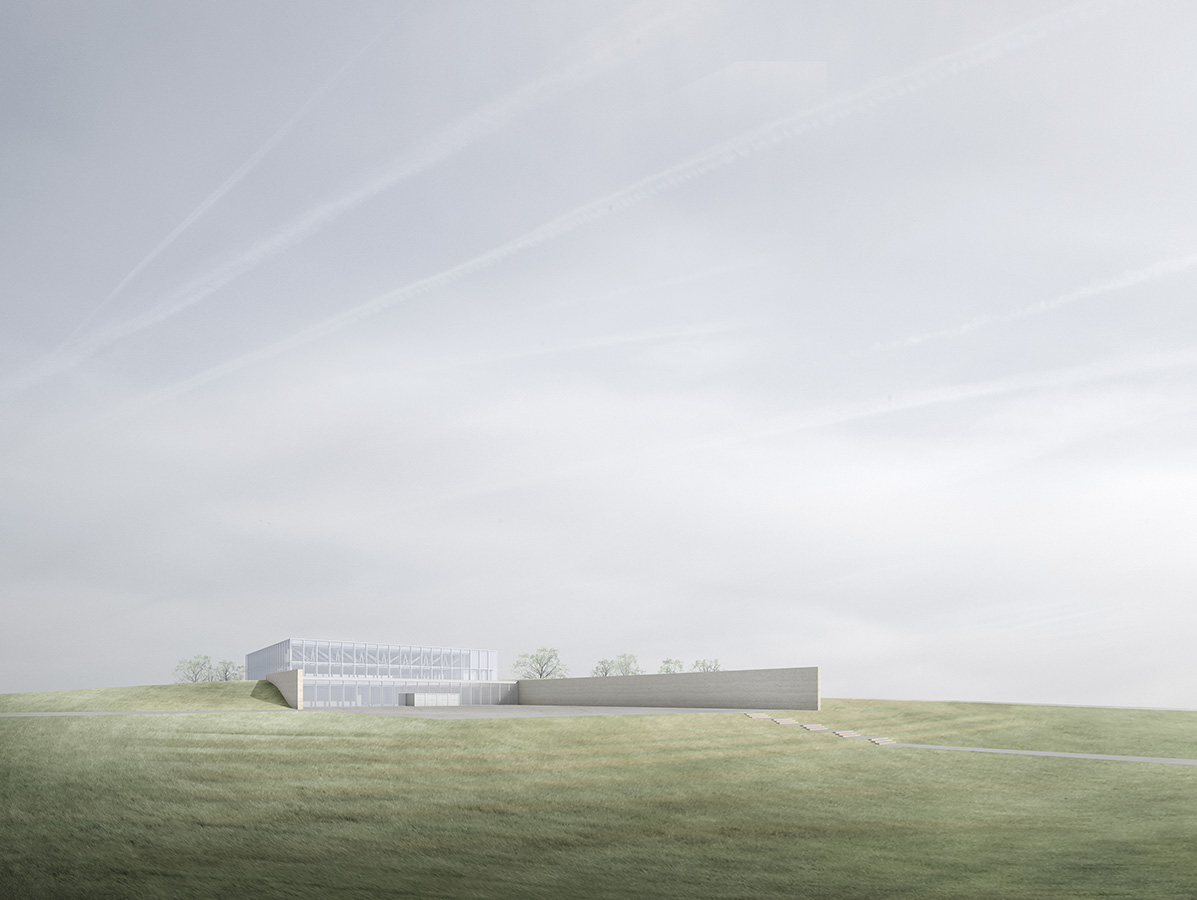

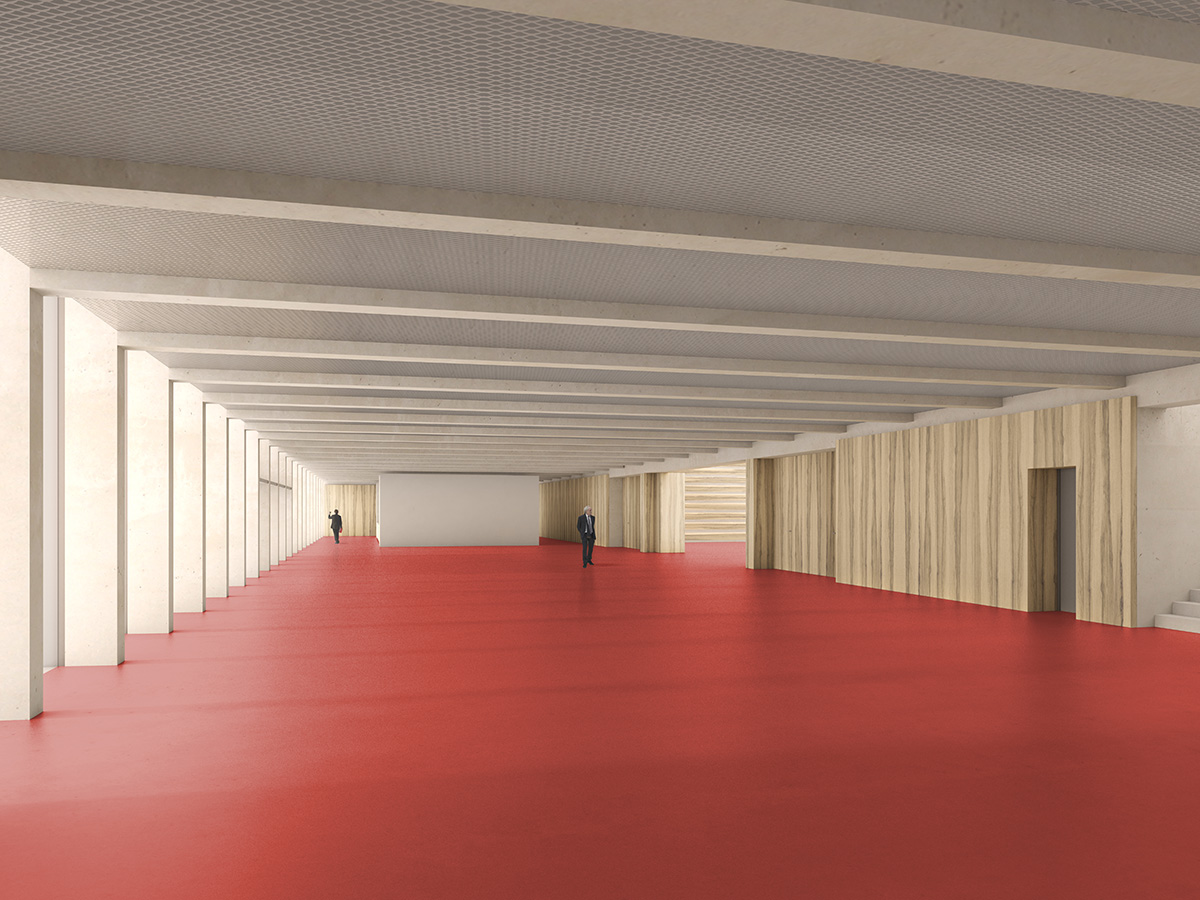

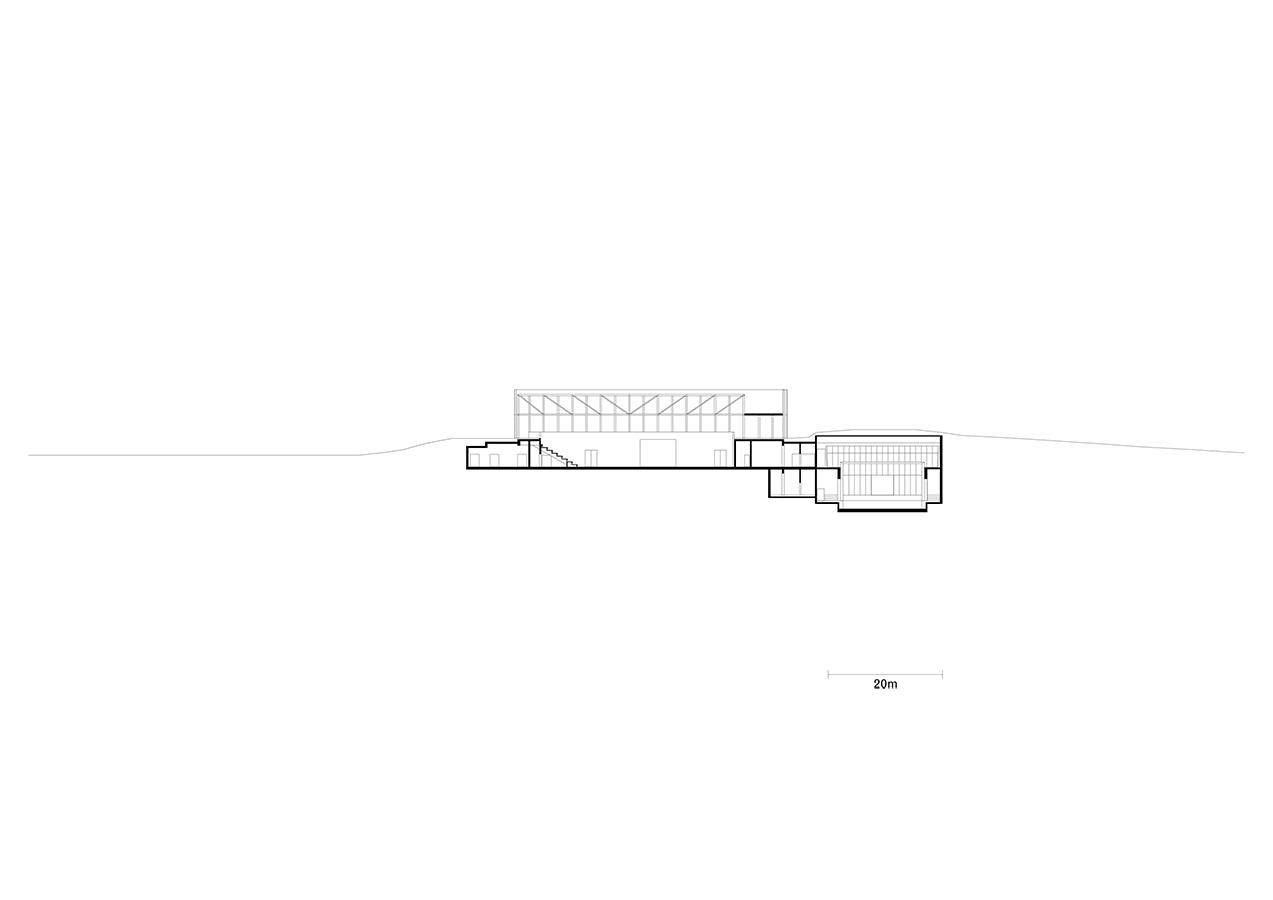

The building is embedded in the landscape, characterised by expansive meadows and fields, which it integrates as an architectural theme. Two retaining walls made of bush-hammered, in-situ concrete frame a forecourt in front of the main entrance to the building. This square serves as a forum for diverse outdoor events, such as open air concerts. The main entrance leads into the naturally lit foyer, from where the large event hall is accessed. While the lower level of the hall is sunk into the earth, the upper gallery level, which is glazed on all sides, rises above the highest point of the terrain. The event hall provides space for 3,500 people and can be used for a diverse range of events, including sporting events. The trussed steel construction of the ceiling spans column-free over the entire length of the hall.

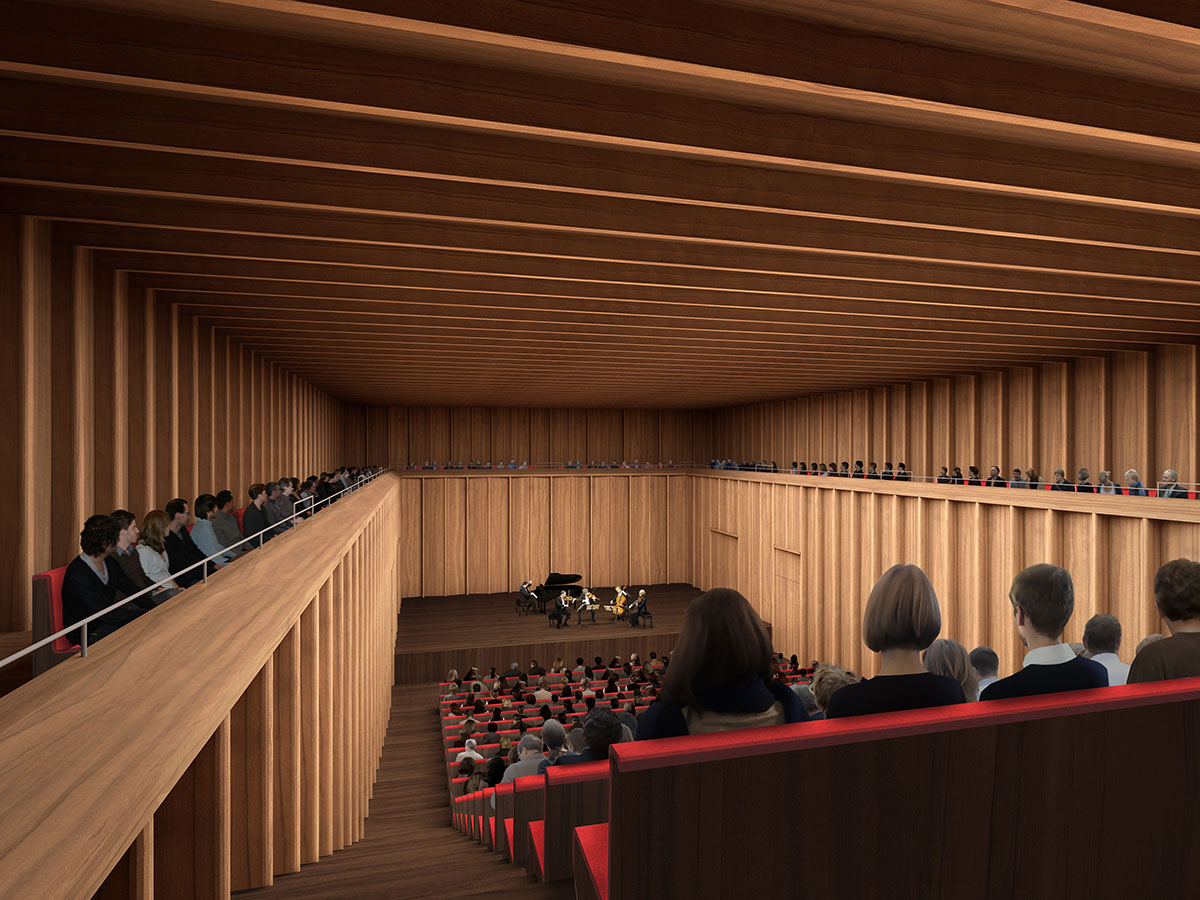

The more intimate chamber music hall seats up to 500 people. From the outside this smaller hall is only perceptible as a modulation of the landscape. As is the case for the event hall, the chamber music hall likewise features a gallery level with audience seating.

A conference centre and a museum for the Würth art collection are to follow in a second construction stage.

Team: David Chipperfield, Alexander Schwarz, Harald Müller, Martin Reichert, Annette Flohrschütz, Christian Helfrich, Thomas Schöpf | Collaborator: Kraft + Kraft Architekten | Consultant: ZB Zimmermann und Becker GmbH, Reba Fassadentechnik AG, Drees & Sommer AG | Structural engineer: RPB Rückert GmbH | Landscape: Realgrün Landschaftsarchitekten | Post date: 30/01/2017 | Views: 6.615
